Perkins Diesel Generator ARK-P 275 S5

ARK-P 275 S5 Diesel Generator

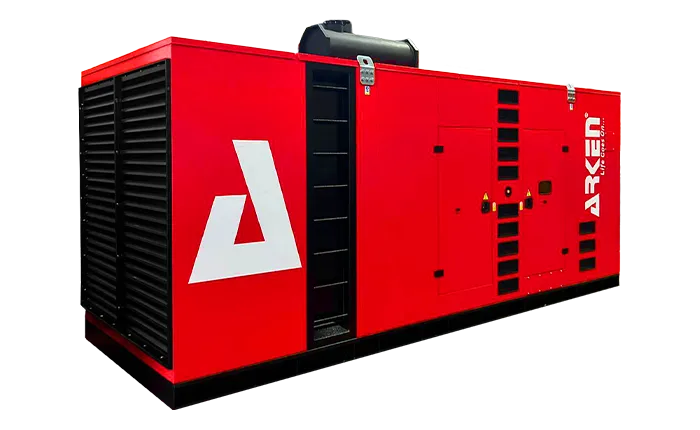

The ARK-P 275 S5 diesel generator, manufactured by Arken Generator, delivers 250 kVA prime and 275 kVA standby power, providing high efficiency and durability for industrial and commercial operations. Powered by the Perkins 1206A-E70TTAG3 6-cylinder, turbocharged, air-to-air cooled engine, it ensures exceptional performance, fuel efficiency, and long-lasting reliability. Its STAMFORD UCDI274K alternator with electronic AVR offers ±1% voltage regulation and <5% THD, ensuring clean, stable, and continuous power output. Built to comply with ISO 8528 and ISO 3046 standards, the ARK-P 275 S5 operates quietly at 75.3 dBA, features a corrosion-resistant canopy, and comes with a 1-year or 1000-hour warranty, making it a dependable and efficient power generation solution for both continuous and backup use.

Power Prime (kVA / kW)

250 / 200

Power Standby (kVA / kW)

275 / 220

Speed (r.p.m)

1500

Standard Voltage

400/230VAC

Power Factor(Cos Phi)

0.8
BrandPerkins
Power PRP [kW]226.2
Model1206A-E70TTAG3
N° of Cylinders / Valves6/24
Engine Type4
Displacement [lt]7.01
AspirationTurbocharged - Air to air cooled
Bore[mm] x Stroke[mm]105x135
Compression Ratio15.8:1
Air FilterHeavy Duty
Cooling MethodWater Cooled (water + %50 antifreeze)
Total Coolant Capacity (lt)25
Governor TypeECM (Engine Control Modul)
Electrical System12VDC
Battery Charger Current100A
Oil Capacity [lt]16
Exhaust Gas Flow PRP [m3/min]30,9
Exhaust Gas Temp. [°C]515.8
Air Flow PRP [m3/min]13.5
Cooling Air Flow PRP [m3/min]4.42
Starter Power (kW)5kW
Standard Battery Voltage [V]12VDC
Standard Battery Capacity1x105Ah
Standard Battery TypeMaintenance-Free Lead Acid
BrandStamford
ModelUCDI274K
Voltage400 /230 VAC
Number of Phase3
Power Factor0.8
Number of Poles4
Connection TypeStar
BearingSingle
