Perkins Diesel Generator ARK-P 1125 N5

ARK-P 1125 N5 Diesel Generator

The ARK-P 1125 N5 diesel generator, developed by Arken Generator, delivers 1020 kVA prime and 1110 kVA standby power, ensuring powerful and efficient energy generation for heavy-duty industrial and commercial operations. Powered by the Perkins 4008-TAG2A 8-cylinder, turbocharged, air-to-air cooled engine, it offers superior fuel efficiency, smooth performance, and long-term reliability. The NEKRA ARK 6E alternator with electronic AVR ensures ±1% voltage regulation and <5% THD, guaranteeing clean and stable energy output. Built in compliance with ISO 8528 and ISO 3046 standards, the ARK-P 1125 N5 operates at 87 dBA, features a robust, corrosion-resistant canopy, and includes a 2-year or 1000-hour warranty, making it a dependable and high-performance power solution for continuous and emergency applications.

Power Prime (kVA / kW)

1020 / 816

Power Standby (kVA / kW)

1110 / 888

Speed (r.p.m)

1500

Standard Voltage

400/230VAC

Power Factor(Cos Phi)

0.8
BrandPerkins
Power PRP [kW]861
Model4008-TAG2A
N° of Cylinders / Valves8/32
Engine Type4
Displacement [lt]30.56
AspirationTurbocharged - Air to air cooled
Bore[mm] x Stroke[mm]160x190
Compression Ratio13.6:1
Air FilterHeavy Duty
Cooling MethodWater Cooled (water + %50 antifreeze)
Total Coolant Capacity (lt)149
Governor TypeElectronic
Electrical System24VDC
Battery Charger Current55A
Oil Capacity [lt]153
Exhaust Gas Flow PRP [m3/min]200
Exhaust Gas Temp. [°C]438
Air Flow PRP [m3/min]75
Cooling Air Flow PRP [m3/min]22.5
Starter Power (kW)8,2kW
Standard Battery Voltage [V]24VDC
Standard Battery Capacity4x105Ah
Standard Battery TypeMaintenance-Free Lead Acid
BrandNekra
ModelARK 6E
Voltage400 /230 VAC
Number of Phase3
Power Factor0.8
Number of Poles4
Connection TypeStar
BearingSingle

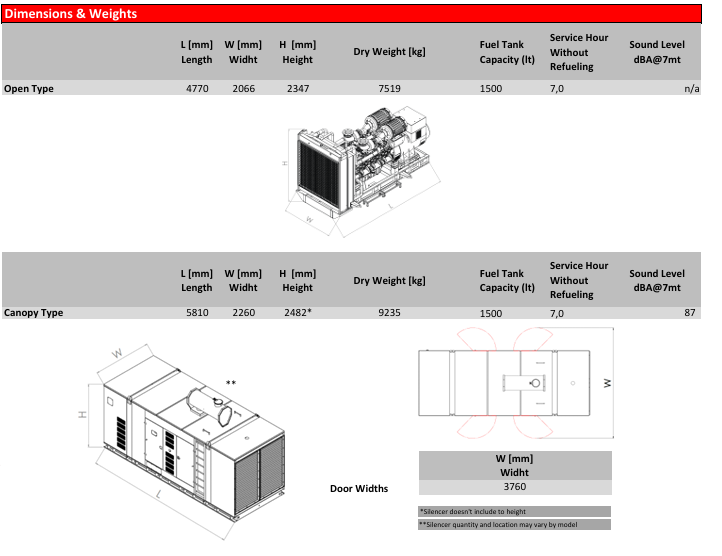

Datasheet
