Baudouin Diesel Generator ARK-B 660 N5

ARK-B 660 N5 Diesel Generator – High-Capacity Power for Industrial and Commercial Use

The ARK-B 660 N5 diesel generator by Arken Generator delivers 600 kVA prime and 660 kVA standby power, featuring the Baudouin 8M21G660/5 8-cylinder, turbocharged, water-cooled engine. Designed for high-demand energy requirements, it ensures exceptional efficiency, stability, and operational reliability.

Its NEKRA ARK 5E alternator provides 96% efficiency, ±1% voltage regulation, and <5% THD, supplying clean and dependable electricity. Built according to ISO 8528 and ISO 3046 standards, the ARK-B 660 N5 operates at 87 dBA and includes a 2-year or 1000-hour warranty, offering reliable performance for both continuous and standby power generation.

Power Prime (kVA / kW)

600 / 480

Power Standby (kVA / kW)

660 / 528

Speed (r.p.m)

1500

Standard Voltage

400/230VAC

Power Factor(Cos Phi)

0.8
BrandBAUDOUIN
Power PRP [kW]530
Model8M21G660/5
N° of Cylinders / Valves8/32
Engine Type4
Displacement [lt]16,72
AspirationTurbocharged - Aftercooled
Bore[mm] x Stroke[mm]127x165
Compression Ratio15:1
Air FilterHeavy Duty
Cooling MethodWater Cooled (water + %50 antifreeze)
Total Coolant Capacity (lt)101
Governor TypeElectronic
Electrical System24VDC
Battery Charger Current70
Oil Capacity [lt]45
Exhaust Gas Flow PRP [m3/min]110,3
Exhaust Gas Temp. [°C]≤600
Air Flow PRP [m3/min]32,6
Cooling Air Flow PRP [m3/min]800
Starter Power (kW)8.5
Standard Battery Voltage [V]24VDC
Standard Battery Capacity2x105Ah
Standard Battery TypeMaintenance-Free Lead Acid
BrandNEKRA
ModelARK 5E
Voltage400 /230 VAC
Number of Phase3
Power FactorARKEM
Number of Poles4
Connection TypeStar
BearingSingle

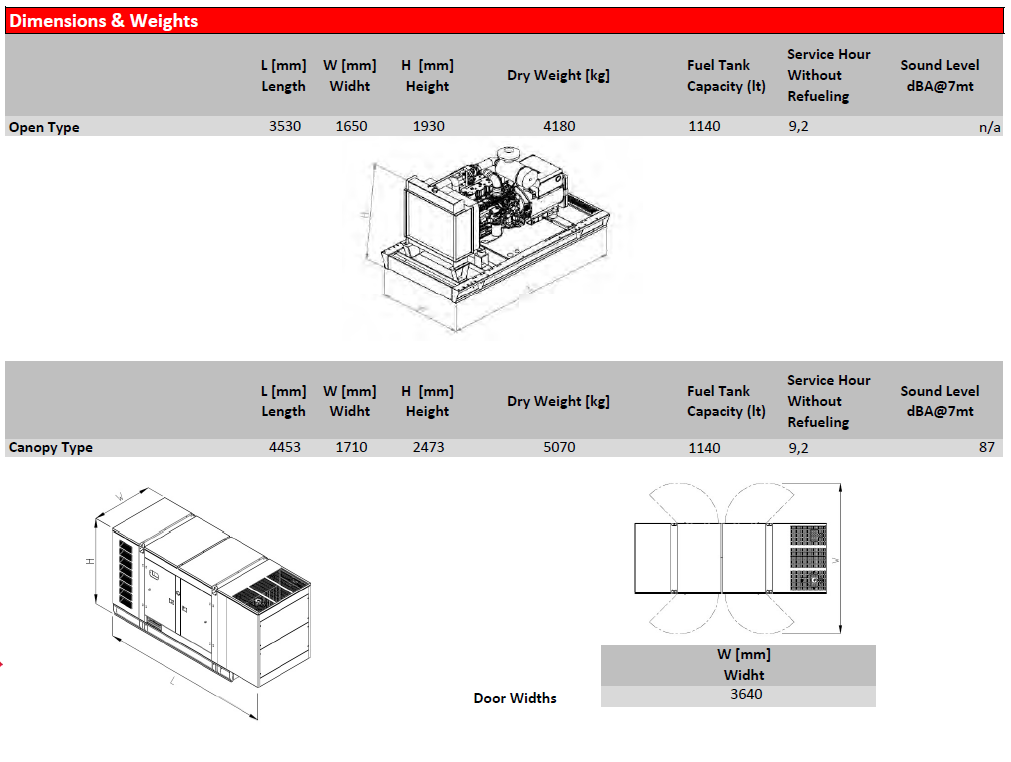

Datasheet
